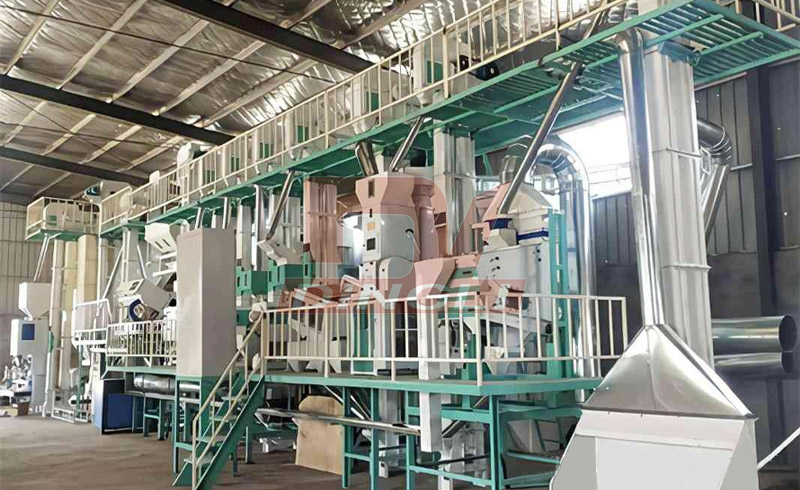

The complete set of rice equipment has mature technology, compact combination, high rice yield and the whole line includes rice cleaning, stone removal, rice husking, rice milling, polishing, color selection, grading, packaging and other processes.
Rice processing equipment mainly consists of bucket elevators, vibrating screens, stone removers, magnetic separators, rice hullers, separators, rice mills, graders, rice color sorters, polishers, conveyors, packaging scales, matching wind nets, suction separators and other equipment.
The rice processing process is as follows:
1. Cleaning process
The rice enters the process through the lower grain pit, and the cleaning screen first removes light impurities and dust from the millet. Ensure the removal of large, medium, small and light impurities, sand and stone, and deflated millet. The stone removal adopts a suction specific gravity stone remover, which works under negative pressure and has the characteristics of low dust, high stone removal efficiency, simple operation and maintenance, and less grain in the stone. Magnetic separation process is designed in the front of rice milling and polishing equipment to remove metal impurities in the millet, protect the normal operation of the equipment and the edible safety of the finished product. Suction devices are set at each dust generating point in the cleaning process to control and reduce the dust in the workshop in a closed state.
2. Hulling, rice milling and polishing process
The most advanced hulling machine in China is used. This machine has the characteristics of simple operation, convenient maintenance, high hulling rate and low noise. It is the preferred equipment for the hulling process. The hulling, rice milling and polishing equipment is equipped with a buffer bucket to ensure the stability of the flow of the subsequent process.
The latest polishing machine is used for the rice milling and polishing process. The machine is simple to operate, easy to maintain, and the equipment has good durability. 3. Selection, grading and packaging process
To control the quality, the rice selection is completed by the CCS color sorter to separate the rice grains with different colors, disease spots and needle-pointed black heads. At this point, if the quality of the raw grain is excellent, the produced rice can meet the quality requirements of general-grade rice, and it will not enter the subsequent processing but directly enter the packaging process.
4. Dust removal system
The dust removal system uses a centralized air net. In order to meet environmental protection requirements, the dust removal air net uses a downward-spinning 55--800 dust collec
Model | Processing Capacity (T/D) | Equipment Power (KW) | Floor Space (M) | |
DLR10T |
10 | 30 |
10×4×4 |
|
DLR20T |
20 | 40 |
13×4×4.2 |
|
DLR30T |
30 | 110 |
24×6×6 |
|
DLR50T |
50 | 150 | 25×6×6 | |
DLR100T |
100 | 330 |
33×8×8 |
|
DLR150T |
150 | 500 |
35×8×8 |
|
DLR200T |
200 | 820 |
48×8×8 |
